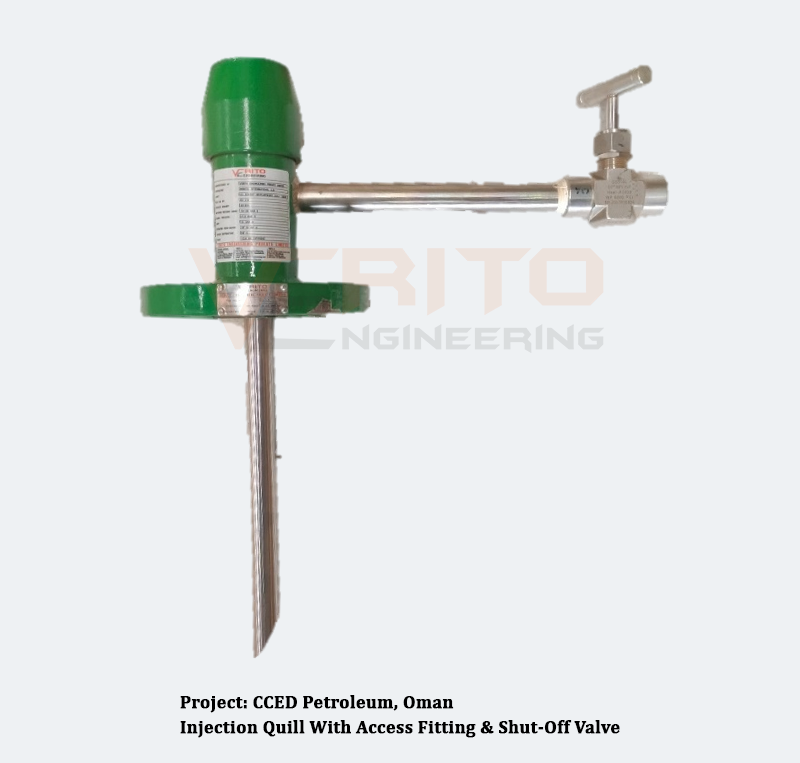

Injection Quill With Access Fitting & Shut-Off Valve





Our range of retrievable products, intended for chemical injection or sampling purposes, aims to eliminate the necessity of depressurizing or redirecting the fluid in the process line during the retrieval of the injector or quill.


Access fittings are employed alongside our retrieval tool and service valve, accommodating working pressures of up to 6000 psi (414 bar).


Verito’s retrievable injection quill, retrieval tool, and service valve can be seamlessly interchanged with standard equipment used in the industry.









Specifications
  • Type: Tee Type, Retrievable, Access Fitting
  • Material Of Construction: SS304, SS304L, SS316, SS316L, Super Duplex Stainless Steel, Hast Alloy, Inconel Alloy, Special Alloy.
  • Operating Pressure: 0 - 200 Bar Max.
  • Design Temp: -20℃ to 200℃
  • Certificates: (I) Type 3.1 - EN10204 For Pressure Containing Parts (II) Type 2.2- EN10204 For Non-Pressure Containing Parts + Gaskets, Seals, Cover, Etc.
  • Location / Orientation:Top of Pipe (12’O Clock & 2’O Clock Position)
  • Injection Quill Size: upto 3”
  • Quill Length: upto 1070 mm
  • Code Compliant: ASME, code B31.3, ISO



Features
  • Customizable Option available at inlet (Shut-Off)
  • Compact design
  • Reduced leakage points & Leak-tightness tested in conformity with BS6755/ISO 5208 with an A-level leakage rate
  • Ease in installation and maintenance
  • Inbuilt NRV
  • Durability for High Pressure.
